//  This is code to bootstrap dyld.  This work in normally done for a program by dyld and crt.
//  In dyld we have to do this manually.
//
uintptr_t start(const dyld3::MachOLoaded* appsMachHeader, int argc, const char* argv[],
				const dyld3::MachOLoaded* dyldsMachHeader, uintptr_t* startGlue)
{
	///省略代码
	// now that we are done bootstrapping dyld, call dyld's main
	uintptr_t appsSlide = appsMachHeader->getSlide();
	return dyld::_main((macho_header*)appsMachHeader, appsSlide, argc, argv, envp, apple, startGlue);
}

uintptr_t
_main(const macho_header* mainExecutableMH, uintptr_t mainExecutableSlide,
		int argc, const char* argv[], const char* envp[], const char* apple[],
		uintptr_t* startGlue)
{
  ///省略代码
  // Grab the cdHash of the main executable from the environment
  // 创建主程序cdHash的空间
	uint8_t mainExecutableCDHashBuffer[20];
	const uint8_t* mainExecutableCDHash = nullptr;
	if ( const char* mainExeCdHashStr = _simple_getenv(apple, "executable_cdhash") ) {
		unsigned bufferLenUsed;
		if ( hexStringToBytes(mainExeCdHashStr, mainExecutableCDHashBuffer, sizeof(mainExecutableCDHashBuffer), bufferLenUsed) )
			mainExecutableCDHash = mainExecutableCDHashBuffer;
	}
	/////配置信息，获取主程序的mach-o header、silder（ASLR的偏移值）
	getHostInfo(mainExecutableMH, mainExecutableSlide);
  ///通过silder+ASLR可以找到信息
	uintptr_t result = 0;
	sMainExecutableMachHeader = mainExecutableMH;
	sMainExecutableSlide = mainExecutableSlide;

  ///省略代码
  //设置上下文，将这里所有的变量放到了gLinkContext中了，保存起来
  setContext(mainExecutableMH, argc, argv, envp, apple);
  //配置进程是否受限，envp是环境变量
  configureProcessRestrictions(mainExecutableMH, envp);
      configureProcessRestrictions(mainExecutableMH, envp);
	///检测是否强制dyld3
	// Check if we should force dyld3.  Note we have to do this outside of the regular env parsing due to AMFI
	if ( dyld3::internalInstall() ) {
		if (const char* useClosures = _simple_getenv(envp, "DYLD_USE_CLOSURES")) {
			if ( strcmp(useClosures, "0") == 0 ) {
				sClosureMode = ClosureMode::Off;
			} else if ( strcmp(useClosures, "1") == 0 ) {
	#if !__i386__ // don't support dyld3 for 32-bit macOS
				sClosureMode = ClosureMode::On;
				sClosureKind = ClosureKind::full;
	#endif
			} else if ( strcmp(useClosures, "2") == 0 ) {
				sClosureMode = ClosureMode::On;
				sClosureKind = ClosureKind::minimal;
			} else {
				dyld::warn("unknown option to DYLD_USE_CLOSURES.  Valid options are: 0 and 1\n");
			}
		}
	}
  #if TARGET_OS_OSX
    ///受限制的进程，环境变量可能会变化，需要重新设置
    if ( !gLinkContext.allowEnvVarsPrint && !gLinkContext.allowEnvVarsPath && !gLinkContext.allowEnvVarsSharedCache ) {
		pruneEnvironmentVariables(envp, &apple);
		// set again because envp and apple may have changed or moved
		setContext(mainExecutableMH, argc, argv, envp, apple);
	}
	else
#endif
	{
    ///检查环境变量
		checkEnvironmentVariables(envp);
    ///default value for DYLD_FALLBACK_FRAMEWORK_PATH, if not set in environment
    ///如果没有环境变量 设置默认值
		defaultUninitializedFallbackPaths(envp);
	}
  // load shared cache 加载共享缓存
	checkSharedRegionDisable((dyld3::MachOLoaded*)mainExecutableMH, mainExecutableSlide)
	#if !TARGET_OS_SIMULATOR
  ///是否有启动闭包 dyld3有闭包
	if ( sClosureMode == ClosureMode::Off ) {
		if ( gLinkContext.verboseWarnings )
			dyld::log("dyld: not using closures\n");
	} else {
    ///dyld3有闭包
    ///设置加载启动模式
		sLaunchModeUsed = DYLD_LAUNCH_MODE_USING_CLOSURE;
    ///配置闭包
		const dyld3::closure::LaunchClosure* mainClosure = nullptr;
		dyld3::closure::LoadedFileInfo mainFileInfo;
		mainFileInfo.fileContent = mainExecutableMH;
		mainFileInfo.path = sExecPath;
    // check for closure in cache first
    // 判断缓存中是否已经有闭包
		if ( sSharedCacheLoadInfo.loadAddress != nullptr ) {
			mainClosure = sSharedCacheLoadInfo.loadAddress->findClosure(sExecPath);
			if ( gLinkContext.verboseWarnings && (mainClosure != nullptr) )
				dyld::log("dyld: found closure %p (size=%lu) in dyld shared cache\n", mainClosure, mainClosure->size());
			if ( mainClosure != nullptr )
				sLaunchModeUsed |= DYLD_LAUNCH_MODE_CLOSURE_FROM_OS;
		}
    ///如果闭包已失效
    if ( (mainClosure != nullptr) && !closureValid(mainClosure, mainFileInfo, mainExecutableCDHash, true, envp) ) {
			mainClosure = nullptr;
			sLaunchModeUsed &= ~DYLD_LAUNCH_MODE_CLOSURE_FROM_OS;
		}
    ///没有闭包创建一个
    if ( (mainClosure == nullptr) && allowClosureRebuilds ) {
			// if forcing closures, and no closure in cache, or it is invalid, check for cached closure
			if ( !sForceInvalidSharedCacheClosureFormat )
				mainClosure = findCachedLaunchClosure(mainExecutableCDHash, mainFileInfo, envp, bootToken);
			if ( mainClosure == nullptr ) {
				// if  no cached closure found, build new one
				mainClosure = buildLaunchClosure(mainExecutableCDHash, mainFileInfo, envp, bootToken);
				if ( mainClosure != nullptr )
					sLaunchModeUsed |= DYLD_LAUNCH_MODE_BUILT_CLOSURE_AT_LAUNCH;
			}
		}
		// try using launch closure 使用启动闭包
		if ( mainClosure != nullptr ) {
			CRSetCrashLogMessage("dyld3: launch started");
			if ( mainClosure->topImage()->fixupsNotEncoded() )
				sLaunchModeUsed |= DYLD_LAUNCH_MODE_MINIMAL_CLOSURE;
      bool closureOutOfDate;
			bool recoverable;
      ///启动闭包
			bool launched = launchWithClosure(mainClosure, sSharedCacheLoadInfo.loadAddress, (dyld3::MachOLoaded*)mainExecutableMH,
											  mainExecutableSlide, argc, argv, envp, apple, diag, &result, startGlue, &closureOutOfDate, &recoverable);
      /// 如果启动失败
      if ( !launched && closureOutOfDate && allowClosureRebuilds ) {
				// closure is out of date, build new one
				mainClosure = buildLaunchClosure(mainExecutableCDHash, mainFileInfo, envp, bootToken);
        ///重新启动
        launched = launchWithClosure(mainClosure, sSharedCacheLoadInfo.loadAddress, (dyld3::MachOLoaded*)mainExecutableMH,
												 mainExecutableSlide, argc, argv, envp, apple, diag, &result, startGlue, &closureOutOfDate, &recoverable);
      }
      ///启动成功 返回main函数
      if ( launched ) {
				gLinkContext.startedInitializingMainExecutable = true;
				if (sSkipMain)
					result = (uintptr_t)&fake_main;
				return result;
			}
      ///不是dyld3的省略代码
    }
   #endif
   ///省略代码
   // load any inserted libraries插入动态库
		if	( sEnv.DYLD_INSERT_LIBRARIES != NULL ) {
			for (const char* const* lib = sEnv.DYLD_INSERT_LIBRARIES; *lib != NULL; ++lib)
				loadInsertedDylib(*lib);
		}
   ///弱引用绑定主程序
   sMainExecutable->weakBind(gLinkContext);
    // run all initializers
    // 运行所有initializers
		initializeMainExecutable();
    // notify any montoring proccesses that this process is about to enter main()
    /// 通知可以进入main函数了
		notifyMonitoringDyldMain();
}

void initializeMainExecutable()
{
	// record that we've reached this step
	gLinkContext.startedInitializingMainExecutable = true;

	// run initialzers for any inserted dylibs
	ImageLoader::InitializerTimingList initializerTimes[allImagesCount()];
	initializerTimes[0].count = 0;
	const size_t rootCount = sImageRoots.size();
	if ( rootCount > 1 ) {
    ///遍历 执行
		for(size_t i=1; i < rootCount; ++i) {
			sImageRoots[i]->runInitializers(gLinkContext, initializerTimes[0]);
		}
	}

	// run initializers for main executable and everything it brings up
	sMainExecutable->runInitializers(gLinkContext, initializerTimes[0]);

	// register cxa_atexit() handler to run static terminators in all loaded images when this process exits
	if ( gLibSystemHelpers != NULL )
		(*gLibSystemHelpers->cxa_atexit)(&runAllStaticTerminators, NULL, NULL);

	// dump info if requested
	if ( sEnv.DYLD_PRINT_STATISTICS )
		ImageLoader::printStatistics((unsigned int)allImagesCount(), initializerTimes[0]);
	if ( sEnv.DYLD_PRINT_STATISTICS_DETAILS )
		ImageLoaderMachO::printStatisticsDetails((unsigned int)allImagesCount(), initializerTimes[0]);
}

void ImageLoader::runInitializers(const LinkContext& context, InitializerTimingList& timingInfo)
{
	uint64_t t1 = mach_absolute_time();
	mach_port_t thisThread = mach_thread_self();
	ImageLoader::UninitedUpwards up;
	up.count = 1;
	up.imagesAndPaths[0] = { this, this->getPath() };
  ///调用
	processInitializers(context, thisThread, timingInfo, up);
	context.notifyBatch(dyld_image_state_initialized, false);
	mach_port_deallocate(mach_task_self(), thisThread);
	uint64_t t2 = mach_absolute_time();
	fgTotalInitTime += (t2 - t1);
}

void ImageLoader::processInitializers(const LinkContext& context, mach_port_t thisThread,
									 InitializerTimingList& timingInfo, ImageLoader::UninitedUpwards& images)
{
	uint32_t maxImageCount = context.imageCount()+2;
	ImageLoader::UninitedUpwards upsBuffer[maxImageCount];
	ImageLoader::UninitedUpwards& ups = upsBuffer[0];
	ups.count = 0;
	// Calling recursive init on all images in images list, building a new list of
	// uninitialized upward dependencies.
  // 递归实例化
	for (uintptr_t i=0; i < images.count; ++i) {
		images.imagesAndPaths[i].first->recursiveInitialization(context, thisThread, images.imagesAndPaths[i].second, timingInfo, ups);
	}
	// If any upward dependencies remain, init them.
	if ( ups.count > 0 )
		processInitializers(context, thisThread, timingInfo, ups);
}

void ImageLoader::recursiveInitialization(const LinkContext& context, mach_port_t this_thread, const char* pathToInitialize,
										  InitializerTimingList& timingInfo, UninitedUpwards& uninitUps)
{
  ///递归锁
	recursive_lock lock_info(this_thread);
	recursiveSpinLock(lock_info);
	if ( fState < dyld_image_state_dependents_initialized-1 ) {
		uint8_t oldState = fState;
		// break cycles 结束递归
		fState = dyld_image_state_dependents_initialized-1;
		try {
			// initialize lower level libraries first
			for(unsigned int i=0; i < libraryCount(); ++i) {
				ImageLoader* dependentImage = libImage(i);
				if ( dependentImage != NULL ) {
					// don't try to initialize stuff "above" me yet
					if ( libIsUpward(i) ) {
						uninitUps.imagesAndPaths[uninitUps.count] = { dependentImage, libPath(i) };
						uninitUps.count++;
					}
					else if ( dependentImage->fDepth >= fDepth ) {
						dependentImage->recursiveInitialization(context, this_thread, libPath(i), timingInfo, uninitUps);
					}
                }
			}
			// record termination order
			if ( this->needsTermination() )
				context.terminationRecorder(this);

			// let objc know we are about to initialize this image
      // 让objc知道我们要初始化此镜像
			uint64_t t1 = mach_absolute_time();
			fState = dyld_image_state_dependents_initialized;
			oldState = fState;
			context.notifySingle(dyld_image_state_dependents_initialized, this, &timingInfo);

			// initialize this image
      /// 初始化镜像
			bool hasInitializers = this->doInitialization(context);

			// let anyone know we finished initializing this image
      /// 让任何人都知道我们完成了这个镜像的初始化
			fState = dyld_image_state_initialized;
			oldState = fState;
			context.notifySingle(dyld_image_state_initialized, this, NULL);

			if ( hasInitializers ) {
				uint64_t t2 = mach_absolute_time();
				timingInfo.addTime(this->getShortName(), t2-t1);
			}
		}
		catch (const char* msg) {
			// this image is not initialized
			fState = oldState;
			recursiveSpinUnLock();
			throw;
		}
	}
	recursiveSpinUnLock();
}

static void notifySingle(dyld_image_states state, const ImageLoader* image, ImageLoader::InitializerTimingList* timingInfo)
{
	//dyld::log("notifySingle(state=%d, image=%s)\n", state, image->getPath());
	std::vector<dyld_image_state_change_handler>* handlers = stateToHandlers(state, sSingleHandlers);
	if ( handlers != NULL ) {
		dyld_image_info info;
		info.imageLoadAddress	= image->machHeader();
		info.imageFilePath		= image->getRealPath();
		info.imageFileModDate	= image->lastModified();
		for (std::vector<dyld_image_state_change_handler>::iterator it = handlers->begin(); it != handlers->end(); ++it) {
			const char* result = (*it)(state, 1, &info);
			if ( (result != NULL) && (state == dyld_image_state_mapped) ) {
				//fprintf(stderr, "  image rejected by handler=%p\n", *it);
				// make copy of thrown string so that later catch clauses can free it
				const char* str = strdup(result);
				throw str;
			}
		}
	}
	if ( state == dyld_image_state_mapped ) {
		// <rdar://problem/7008875> Save load addr + UUID for images from outside the shared cache
		// <rdar://problem/50432671> Include UUIDs for shared cache dylibs in all image info when using private mapped shared caches
		if (!image->inSharedCache()
			|| (gLinkContext.sharedRegionMode == ImageLoader::kUsePrivateSharedRegion)) {
			dyld_uuid_info info;
			if ( image->getUUID(info.imageUUID) ) {
				info.imageLoadAddress = image->machHeader();
				addNonSharedCacheImageUUID(info);
			}
		}
	}
	if ( (state == dyld_image_state_dependents_initialized) && (sNotifyObjCInit != NULL) && image->notifyObjC() ) {
		uint64_t t0 = mach_absolute_time();
		dyld3::ScopedTimer timer(DBG_DYLD_TIMING_OBJC_INIT, (uint64_t)image->machHeader(), 0, 0);
    ///重点操作
		(*sNotifyObjCInit)(image->getRealPath(), image->machHeader());
		uint64_t t1 = mach_absolute_time();
		uint64_t t2 = mach_absolute_time();
		uint64_t timeInObjC = t1-t0;
		uint64_t emptyTime = (t2-t1)*100;
		if ( (timeInObjC > emptyTime) && (timingInfo != NULL) ) {
			timingInfo->addTime(image->getShortName(), timeInObjC);
		}
	}
    // mach message csdlc about dynamically unloaded images
	if ( image->addFuncNotified() && (state == dyld_image_state_terminated) ) {
		notifyKernel(*image, false);
		const struct mach_header* loadAddress[] = { image->machHeader() };
		const char* loadPath[] = { image->getPath() };
		notifyMonitoringDyld(true, 1, loadAddress, loadPath);
	}
}

void registerObjCNotifiers(_dyld_objc_notify_mapped mapped, _dyld_objc_notify_init init, _dyld_objc_notify_unmapped unmapped)
{
	// record functions to call
	sNotifyObjCMapped	= mapped;
  ///赋值操作
	sNotifyObjCInit		= init;
	sNotifyObjCUnmapped = unmapped;

	// call 'mapped' function with all images mapped so far
	try {
		notifyBatchPartial(dyld_image_state_bound, true, NULL, false, true);
	}
	catch (const char* msg) {
		// ignore request to abort during registration
	}

	// <rdar://problem/32209809> call 'init' function on all images already init'ed (below libSystem)
	for (std::vector<ImageLoader*>::iterator it=sAllImages.begin(); it != sAllImages.end(); it++) {
		ImageLoader* image = *it;
		if ( (image->getState() == dyld_image_state_initialized) && image->notifyObjC() ) {
			dyld3::ScopedTimer timer(DBG_DYLD_TIMING_OBJC_INIT, (uint64_t)image->machHeader(), 0, 0);
			(*sNotifyObjCInit)(image->getRealPath(), image->machHeader());
		}
	}
}

void _objc_init(void)
{
    static bool initialized = false;
    if (initialized) return;
    initialized = true;

    // fixme defer initialization until an objc-using image is found?
    environ_init();
    tls_init();
    static_init();
    runtime_init();
    exception_init();
#if __OBJC2__
    cache_t::init();
#endif
    _imp_implementationWithBlock_init();

    _dyld_objc_notify_register(&map_images, load_images, unmap_image);

#if __OBJC2__
    didCallDyldNotifyRegister = true;
#endif
}

load_images(const char *path __unused, const struct mach_header *mh)
{
    if (!didInitialAttachCategories && didCallDyldNotifyRegister) {
        didInitialAttachCategories = true;
        loadAllCategories();
    }

    // Return without taking locks if there are no +load methods here.
    if (!hasLoadMethods((const headerType *)mh)) return;

    recursive_mutex_locker_t lock(loadMethodLock);

    // Discover load methods
    {
        mutex_locker_t lock2(runtimeLock);
        prepare_load_methods((const headerType *)mh);
    }

    // Call +load methods (without runtimeLock - re-entrant)
 		// 调用了load方法
    call_load_methods();
}

void call_load_methods(void)
{
    static bool loading = NO;
    bool more_categories;

    loadMethodLock.assertLocked();

    // Re-entrant calls do nothing; the outermost call will finish the job.
    if (loading) return;
    loading = YES;

    void *pool = objc_autoreleasePoolPush();

    do {
        // 1. Repeatedly call class +loads until there aren't any more
        while (loadable_classes_used > 0) {
            call_class_loads();
        }

        // 2. Call category +loads ONCE
        more_categories = call_category_loads();

        // 3. Run more +loads if there are classes OR more untried categories
    } while (loadable_classes_used > 0  ||  more_categories);

    objc_autoreleasePoolPop(pool);

    loading = NO;
}

void instrumentObjcMessageSends(BOOL flag)
{
    bool enable = flag;
    // Shortcut NOP
    if (objcMsgLogEnabled == enable)
        return;
    // If enabling, flush all method caches so we get some traces
    if (enable)
        _objc_flush_caches(Nil);
    // Sync our log file
    if (objcMsgLogFD != -1)
        fsync (objcMsgLogFD);
  	//赋值是否需要打印message log
    objcMsgLogEnabled = enable;
}

bool logMessageSend(bool isClassMethod,
                    const char *objectsClass,
                    const char *implementingClass,
                    SEL selector)
{
    char	buf[ 1024 ];

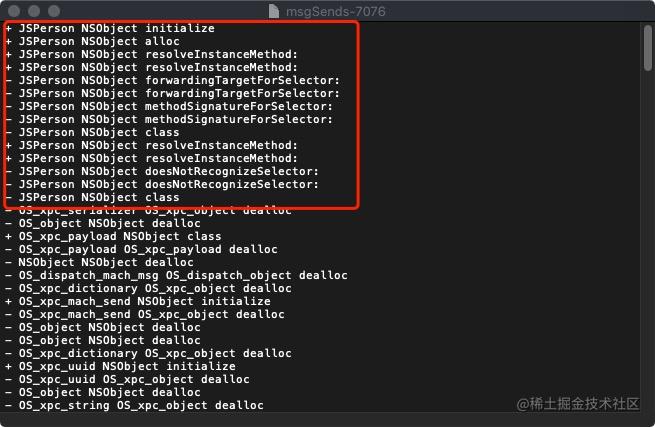

    // Create/open the log file
    if (objcMsgLogFD == (-1))
    {
        ///日志文件打印路径
        snprintf (buf, sizeof(buf), "/tmp/msgSends-%d", (int) getpid ());
        objcMsgLogFD = secure_open (buf, O_WRONLY | O_CREAT, geteuid());
        if (objcMsgLogFD < 0) {
            // no log file - disable logging
            objcMsgLogEnabled = false;
            objcMsgLogFD = -1;
            return true;
        }
    }
    // Make the log entry
    snprintf(buf, sizeof(buf), "%c %s %s %s\n",
            isClassMethod ? '+' : '-',
            objectsClass,
            implementingClass,
            sel_getName(selector));

    objcMsgLogLock.lock();
    write (objcMsgLogFD, buf, strlen(buf));
    objcMsgLogLock.unlock();

    // Tell caller to not cache the method
    return false;
}

// Default forward handler halts the process.
__attribute__((noreturn, cold)) void
objc_defaultForwardHandler(id self, SEL sel)
{
    _objc_fatal("%c[%s %s]: unrecognized selector sent to instance %p "
                "(no message forward handler is installed)",
                class_isMetaClass(object_getClass(self)) ? '+' : '-',
                object_getClassName(self), sel_getName(sel), self);
}
void *_objc_forward_handler = (void*)objc_defaultForwardHandler;

if (slowpath(behavior & LOOKUP_RESOLVER)) {
     behavior ^= LOOKUP_RESOLVER;
     return resolveMethod_locked(inst, sel, cls, behavior);
}

	// lookUpImpOrForward(obj, sel, cls, LOOKUP_INITIALIZE | LOOKUP_RESOLVER)
enum {
    LOOKUP_INITIALIZE = 1,
    LOOKUP_RESOLVER = 2,
    LOOKUP_NIL = 4,
    LOOKUP_NOCACHE = 8,
};

static NEVER_INLINE IMP
resolveMethod_locked(id inst, SEL sel, Class cls, int behavior)
{
    runtimeLock.assertLocked();
    ASSERT(cls->isRealized());
    runtimeLock.unlock();

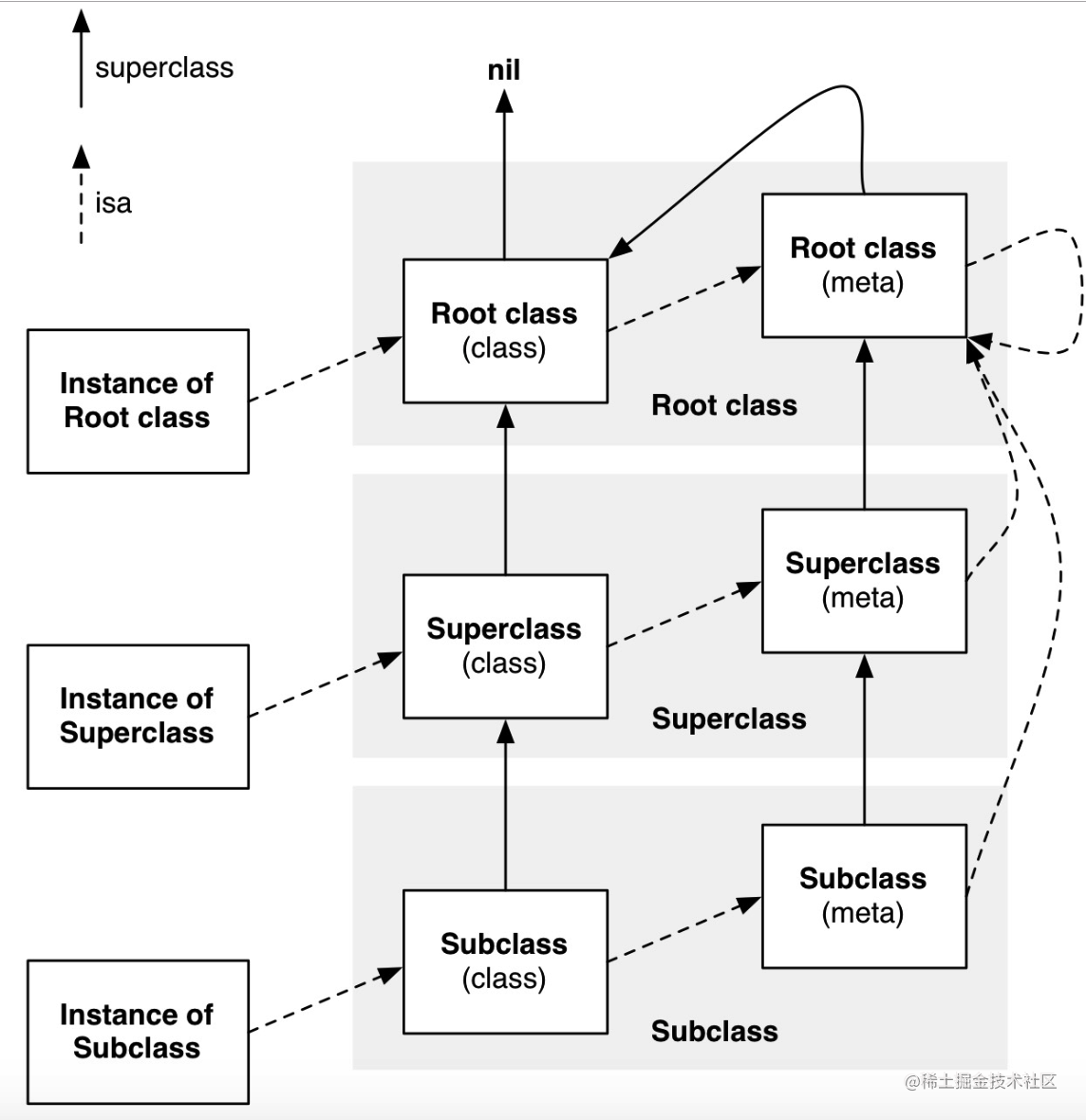

    //判断是否是元类
    if (! cls->isMetaClass()) {
      	//实例方法 解析
        // try [cls resolveInstanceMethod:sel]
        resolveInstanceMethod(inst, sel, cls);
    }
    else {
        // try [nonMetaClass resolveClassMethod:sel]
        // and [cls resolveInstanceMethod:sel]
        //类方法 解析
        resolveClassMethod(inst, sel, cls);
        if (!lookUpImpOrNilTryCache(inst, sel, cls)) {
            resolveInstanceMethod(inst, sel, cls);
        }
    }
    // chances are that calling the resolver have populated the cache
    // so attempt using it
    // 如果前面处理了 重新进行查找
    return lookUpImpOrForwardTryCache(inst, sel, cls, behavior);
}

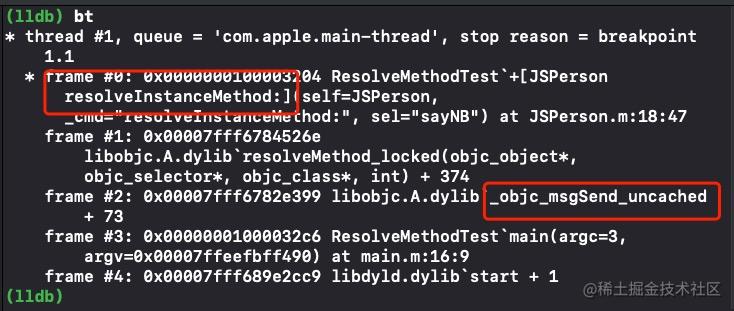

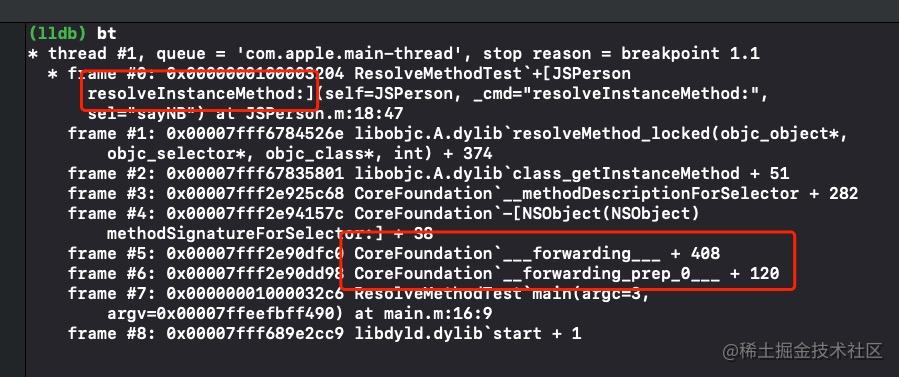

static void resolveInstanceMethod(id inst, SEL sel, Class cls)
{
    runtimeLock.assertUnlocked();
    ASSERT(cls->isRealized());
    //resolveInstanceMethod 类方法
    SEL resolve_sel = @selector(resolveInstanceMethod:);

    if (!lookUpImpOrNilTryCache(cls, resolve_sel, cls->ISA(/*authenticated*/true))) {
        // Resolver not implemented.
      	// 因为系统有默认实现这里不会执行到
        return;
    }
    BOOL (*msg)(Class, SEL, SEL) = (typeof(msg))objc_msgSend;
    bool resolved = msg(cls, resolve_sel, sel);//resolved 表示方法返回值
    // Cache the result (good or bad) so the resolver doesn't fire next time.
    // +resolveInstanceMethod adds to self a.k.a. cls
    // 继续查找 一次
    IMP imp = lookUpImpOrNilTryCache(inst, sel, cls);

    if (resolved  &&  PrintResolving) {
        if (imp) {
            //找到了imp
            _objc_inform("RESOLVE: method %c[%s %s] "
                         "dynamically resolved to %p",
                         cls->isMetaClass() ? '+' : '-',
                         cls->nameForLogging(), sel_getName(sel), imp);
        }
        else {
            // resolved = true 但是不没有对应的处理方法
            // Method resolver didn't add anything?
            _objc_inform("RESOLVE: +[%s resolveInstanceMethod:%s] returned YES"
                         ", but no new implementation of %c[%s %s] was found",
                         cls->nameForLogging(), sel_getName(sel),
                         cls->isMetaClass() ? '+' : '-',
                         cls->nameForLogging(), sel_getName(sel));
        }
    }
}

static void resolveClassMethod(id inst, SEL sel, Class cls)
{
    runtimeLock.assertUnlocked();
    ASSERT(cls->isRealized());
    ASSERT(cls->isMetaClass());
    if (!lookUpImpOrNilTryCache(inst, @selector(resolveClassMethod:), cls)) {
        // Resolver not implemented.
        return;
    }
    Class nonmeta;
    {
        mutex_locker_t lock(runtimeLock);
      	//入参是元类 返回是当前类
        nonmeta = getMaybeUnrealizedNonMetaClass(cls, inst);
        // +initialize path should have realized nonmeta already
        if (!nonmeta->isRealized()) {
            _objc_fatal("nonmeta class %s (%p) unexpectedly not realized",
                        nonmeta->nameForLogging(), nonmeta);
        }
    }
    BOOL (*msg)(Class, SEL, SEL) = (typeof(msg))objc_msgSend;
 		//向当前类发送消息
    bool resolved = msg(nonmeta, @selector(resolveClassMethod:), sel);
    // Cache the result (good or bad) so the resolver doesn't fire next time.
    // +resolveClassMethod adds to self->ISA() a.k.a. cls
    IMP imp = lookUpImpOrNilTryCache(inst, sel, cls);
    if (resolved  &&  PrintResolving) {
        if (imp) {
            _objc_inform("RESOLVE: method %c[%s %s] "
                         "dynamically resolved to %p",
                         cls->isMetaClass() ? '+' : '-',
                         cls->nameForLogging(), sel_getName(sel), imp);
        }
        else {
            // Method resolver didn't add anything?
            _objc_inform("RESOLVE: +[%s resolveClassMethod:%s] returned YES"
                         ", but no new implementation of %c[%s %s] was found",
                         cls->nameForLogging(), sel_getName(sel),
                         cls->isMetaClass() ? '+' : '-',
                         cls->nameForLogging(), sel_getName(sel));
        }
    }
}

NEVER_INLINE
IMP lookUpImpOrForward(id inst, SEL sel, Class cls, int behavior)
{
    ///省略代码
    //判断类是否已加载
    checkIsKnownClass(cls);
    ///加载类 本文不探讨
    cls = realizeAndInitializeIfNeeded_locked(inst, cls, behavior & LOOKUP_INITIALIZE);
    // runtimeLock may have been dropped but is now locked again
    runtimeLock.assertLocked();
    curClass = cls;
    // The code used to lookup the class's cache again right after
    // we take the lock but for the vast majority of the cases
    // evidence shows this is a miss most of the time, hence a time loss.
    //
    // The only codepath calling into this without having performed some
    // kind of cache lookup is class_getInstanceMethod().
    ///循环查找方法实现
    for (unsigned attempts = unreasonableClassCount();;) {
        if (curClass->cache.isConstantOptimizedCache(/* strict */true)) {
#if CONFIG_USE_PREOPT_CACHES
            ///共享缓存查找
            imp = cache_getImp(curClass, sel);
            if (imp) goto done_unlock;
            curClass = curClass->cache.preoptFallbackClass();
#endif
        } else {
            // curClass method list.
            // 二分法 查找当前类的方法列表
            Method meth = getMethodNoSuper_nolock(curClass, sel);
            if (meth) {
                ///找到方法 结束循环跳转到done:
                imp = meth->imp(false);
                goto done;
            }
            if (slowpath((curClass = curClass->getSuperclass()) == nil)) {
                // No implementation found, and method resolver didn't help.
                // Use forwarding.
              	/// 找到根类也没找到方法实现  进行下一步操作forward_imp 下一篇探索
                imp = forward_imp;
                break;
            }
        }
        // Halt if there is a cycle in the superclass chain.
        if (slowpath(--attempts == 0)) {
            _objc_fatal("Memory corruption in class list.");
        }
        // Superclass cache.
      	// 查找父类缓存
        imp = cache_getImp(curClass, sel);
        if (slowpath(imp == forward_imp)) {
            // Found a forward:: entry in a superclass.
            // Stop searching, but don't cache yet; call method
            // resolver for this class first.
            break;
        }
        if (fastpath(imp)) {
            //找到done
            // Found the method in a superclass. Cache it in this class.
            goto done;
        }
      	//父类缓存没找到继续for循环 现在curClass实际是superclass
    }
    // No implementation found. Try method resolver once.
    if (slowpath(behavior & LOOKUP_RESOLVER)) {
        behavior ^= LOOKUP_RESOLVER;
        return resolveMethod_locked(inst, sel, cls, behavior);
    }
 done:
    if (fastpath((behavior & LOOKUP_NOCACHE) == 0)) {
#if CONFIG_USE_PREOPT_CACHES
        while (cls->cache.isConstantOptimizedCache(/* strict */true)) {
            cls = cls->cache.preoptFallbackClass();
        }
#endif
        //查找成功 添加到缓存
        log_and_fill_cache(cls, imp, sel, inst, curClass);
    }
 done_unlock:
    runtimeLock.unlock();
    if (slowpath((behavior & LOOKUP_NIL) && imp == forward_imp)) {
        return nil;
    }
    return imp;
}

ALWAYS_INLINE static method_t *
findMethodInSortedMethodList(SEL key, const method_list_t *list, const getNameFunc &getName)
{
    ASSERT(list);

    auto first = list->begin();
    auto base = first;
    decltype(first) probe;
    uintptr_t keyValue = (uintptr_t)key;
    uint32_t count;
    for (count = list->count; count != 0; count >>= 1) {
        probe = base + (count >> 1);
        uintptr_t probeValue = (uintptr_t)getName(probe);
        //当前sel==要查找的sel
        if (keyValue == probeValue) {
            // `probe` is a match.
            // Rewind looking for the *first* occurrence of this value.
            // This is required for correct category overrides.
            // 可能有同名方法 分类里的实现优先
            while (probe > first && keyValue == (uintptr_t)getName((probe - 1))) {
                probe--;
            }
            return &*probe;
        }

        if (keyValue > probeValue) {
            base = probe + 1;
            count--;
        }
    }
    return nil;
}

int main(int argc, const char * argv[]) {
    /* @autoreleasepool */ { __AtAutoreleasePool __autoreleasepool;

        JSPerson *person = ((JSPerson *(*)(id, SEL))(void *)objc_msgSend)((id)objc_getClass("JSPerson"), sel_registerName("alloc"));
        ((void (*)(id, SEL))(void *)objc_msgSend)((id)person, sel_registerName("saySomething"));

    }
    return 0;
}

struct cache_t {
private:
    explicit_atomic<uintptr_t> _bucketsAndMaybeMask; // 8
    union {
        struct {
            explicit_atomic<mask_t>    _maybeMask; // 4
#if __LP64__
            uint16_t                   _flags;  // 2
#endif
            uint16_t                   _occupied; // 2
        };
        explicit_atomic<preopt_cache_t *> _originalPreoptCache; // 8
    };
  ///省略代码
    void incrementOccupied();
    void setBucketsAndMask(struct bucket_t *newBuckets, mask_t newMask);
  ///省略代码
		unsigned capacity() const;
    struct bucket_t *buckets() const;
    Class cls() const;
    void reallocate(mask_t oldCapacity, mask_t newCapacity, bool freeOld);
  ///省略代码
    void insert(SEL sel, IMP imp, id receiver);
    void copyCacheNolock(objc_imp_cache_entry *buffer, int len);
    void destroy();
    void eraseNolock(const char *func);

    static void init();
    static void collectNolock(bool collectALot);
    static size_t bytesForCapacity(uint32_t cap);
}
