iOS底层探索-类的加载（中）

上一篇我们探索到了readClass函数，只是对函数名字进行了赋值，并没有对ro和rw进行操作，本篇我们就继续探索_read_images函数剩下的调用。

realizeClass的引入

因为我们探索的目的是类的加载，我们先忽略protocol和categories的地方。为了调试代码，我们首先还是先创建一个JSPerson类：

@interface JSPerson : NSObject
@property (nonatomic, strong) NSString *nickName;

- (void)say1;
- (void)say2;

+ (void)sayHappy;
@end

#import "JSPerson.h"
@implementation JSPerson

- (void)say1{
    NSLog(@"JSPerson say : %s",__func__);
}
- (void)say2{
    NSLog(@"JSPerson say : %s",__func__);
}

+ (void)load{
    NSLog(@"load");
}
+ (void)sayHappy{
    NSLog(@"JSPerson say : %s",__func__);
}
@end

接下来我们继续看_read_images函数，发现和类相关的地方有两个地方，realize non-lazy classes和realize future classes，我们在两段代码中加入我们调试的代码，为了观察我们自定义类的加载情况:

// Realize non-lazy classes (for +load methods and static instances)
for (EACH_HEADER) {
    classref_t const *classlist = hi->nlclslist(&count);
    for (i = 0; i < count; i++) {
        Class cls = remapClass(classlist[i]);
        if (!cls) continue;
        ///调试代码 确定是我们自定义的类
        const char *mangledName = cls->nonlazyMangledName();
        const char *customerClassName = "JSPerson";
        if (strcmp(mangledName, customerClassName) == 0) {
            //打印类名
            printf("%s -: non-lazy classes要研究的类: - %s\n",__func__,mangledName);
        }

        addClassTableEntry(cls);

        if (cls->isSwiftStable()) {
            if (cls->swiftMetadataInitializer()) {
                _objc_fatal("Swift class %s with a metadata initializer "
                            "is not allowed to be non-lazy",
                            cls->nameForLogging());
            }
            // fixme also disallow relocatable classes
            // We can't disallow all Swift classes because of
            // classes like Swift.__EmptyArrayStorage
        }
        realizeClassWithoutSwift(cls, nil);
    }
}
ts.log("IMAGE TIMES: realize non-lazy classes");
// Realize newly-resolved future classes, in case CF manipulates them
if (resolvedFutureClasses) {
    for (i = 0; i < resolvedFutureClassCount; i++) {
        Class cls = resolvedFutureClasses[i];
        if (cls->isSwiftStable()) {
            _objc_fatal("Swift class is not allowed to be future");
        }
        ///调试代码 确定是我们自定义的类
        const char *mangledName = cls->nonlazyMangledName();
        const char *customerClassName = "JSPerson";
        if (strcmp(mangledName, customerClassName) == 0) {
            //打印类名
            printf("%s -: realize future classes要研究的类: - %s\n",__func__,mangledName);
        }
        realizeClassWithoutSwift(cls, nil);
        cls->setInstancesRequireRawIsaRecursively(false/*inherited*/);
    }
    free(resolvedFutureClasses);
}
ts.log("IMAGE TIMES: realize future classes");

在两行printf的地方打断点，运行源码程序，看是否执行到断点位置。发现打印了_read_images -: non-lazy classes要研究的类: - JSPerson，代码执行到了non-lazy classes,里面类加载的核心代码在realizeClassWithoutSwift函数，我们继续探索realizeClassWithoutSwift函数。

realizeClassWithoutSwift分析

操作之前的ro

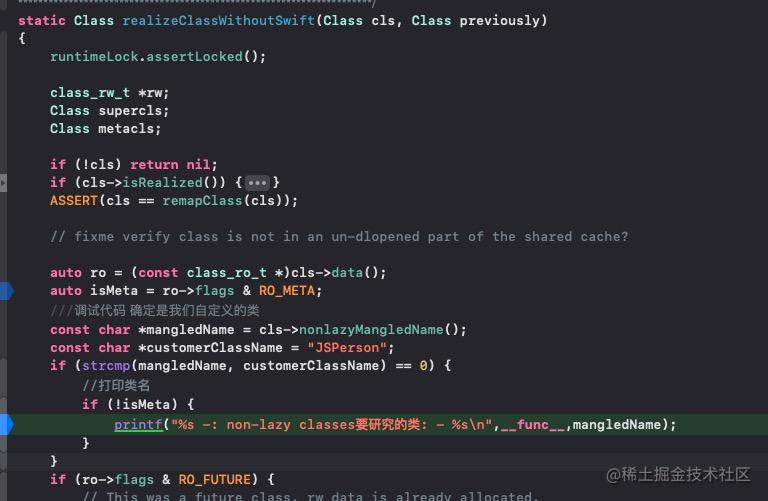

我们从上到下依次阅读代码，定位到auto ro = (const class_ro_t )cls->data();,因为ro是clean Memory里的数据我们比较敏感，我们在图示位置打断点：

使用LLDB调试程序，查看ro里的信息：

(lldb) p ro
(const class_ro_t *) $0 = 0x00000001000080c0
(lldb) p *$0
(const class_ro_t) $1 = {
  flags = 0
  instanceStart = 8
  instanceSize = 16
  reserved = 0
   = {
    ivarLayout = 0x0000000000000000
    nonMetaclass = nil
  }
  name = {
    std::__1::atomic<const char *> = "JSPerson" {
      Value = 0x0000000100003db0 "JSPerson"
    }
  }
  baseMethodList = 0x0000000100008108
  baseProtocols = 0x0000000000000000
  ivars = 0x0000000100008170
  weakIvarLayout = 0x0000000000000000
  baseProperties = 0x0000000100008198
  _swiftMetadataInitializer_NEVER_USE = {}
}
(lldb) p $1.baseMethodList
(void *const) $2 = 0x0000000100008108
(lldb) p *$2
(lldb)

通过打印我们发现此时ro里的baseMethodList为空，目前还不清楚什么时候赋值的，我们继续探索。

rw的赋值

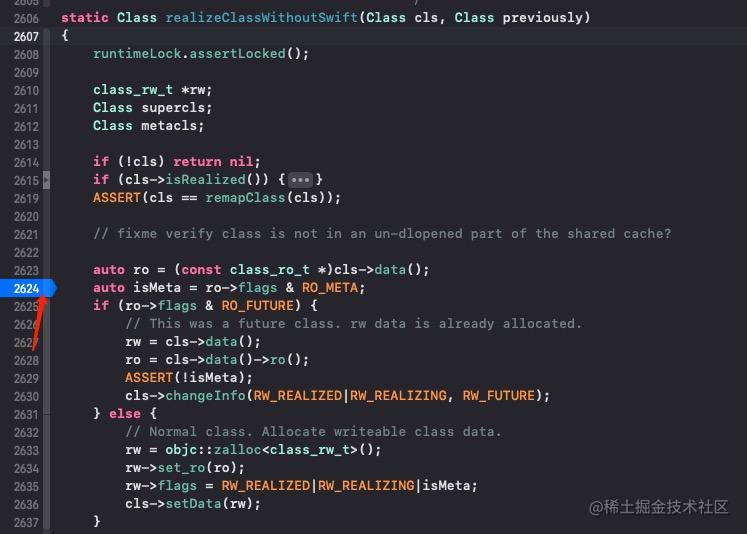

接下来就是对rw的赋值，注意rw是dirty Memory

if (ro->flags & RO_FUTURE) {
     // This was a future class. rw data is already allocated.
     rw = cls->data();
     ro = cls->data()->ro();
     ASSERT(!isMeta);
     cls->changeInfo(RW_REALIZED|RW_REALIZING, RW_FUTURE);
} else {
     // Normal class. Allocate writeable class data.
     rw = objc::zalloc<class_rw_t>();
     rw->set_ro(ro);
     rw->flags = RW_REALIZED|RW_REALIZING|isMeta;
     cls->setData(rw);
}

isa和superClass赋值

后面的代码就是对isa和superClass的赋值：

supercls = realizeClassWithoutSwift(remapClass(cls->getSuperclass()), nil);
metacls = realizeClassWithoutSwift(remapClass(cls->ISA()), nil);

#if SUPPORT_NONPOINTER_ISA
    if (isMeta) {
        // Metaclasses do not need any features from non pointer ISA
        // This allows for a faspath for classes in objc_retain/objc_release.
        ///元类 不是non pointer ISA
        cls->setInstancesRequireRawIsa();
    } else {
        // Disable non-pointer isa for some classes and/or platforms.
        // Set instancesRequireRawIsa.
        bool instancesRequireRawIsa = cls->instancesRequireRawIsa();
        bool rawIsaIsInherited = false;
        static bool hackedDispatch = false;

        if (DisableNonpointerIsa) {
            //如果我们设置变量不使用 non pointer ISA 也会是纯的isa
            // Non-pointer isa disabled by environment or app SDK version
            instancesRequireRawIsa = true;
        }
        else if (!hackedDispatch  &&  0 == strcmp(ro->getName(), "OS_object"))
        {
            // hack for libdispatch et al - isa also acts as vtable pointer
            hackedDispatch = true;
            instancesRequireRawIsa = true;
        }
        else if (supercls  &&  supercls->getSuperclass()  &&
                 supercls->instancesRequireRawIsa())
        {
            // This is also propagated by addSubclass()
            // but nonpointer isa setup needs it earlier.
            // Special case: instancesRequireRawIsa does not propagate
            // from root class to root metaclass
            instancesRequireRawIsa = true;
            rawIsaIsInherited = true;
        }

        if (instancesRequireRawIsa) {
            cls->setInstancesRequireRawIsaRecursively(rawIsaIsInherited);
        }
    }
// SUPPORT_NONPOINTER_ISA
#endif
    // Update superclass and metaclass in case of remapping
    cls->setSuperclass(supercls);
    cls->initClassIsa(metacls);

在realizeClassWithoutSwift函数最后会调用methodizeClass,我们下一小节探索methodizeClass。

methodizeClass分析

methodizeClass顾名思义就是对方法的处理。

static void methodizeClass(Class cls, Class previously)
{
    runtimeLock.assertLocked();
    bool isMeta = cls->isMetaClass();
    auto rw = cls->data();
    auto ro = rw->ro();
    auto rwe = rw->ext();
    // Methodizing for the first time
    if (PrintConnecting) {
        _objc_inform("CLASS: methodizing class '%s' %s",
                     cls->nameForLogging(), isMeta ? "(meta)" : "");
    }
    ///调试代码 确定是我们自定义的类
    const char *mangledName = cls->nonlazyMangledName();
    const char *customerClassName = "JSPerson";
    if (strcmp(mangledName, customerClassName) == 0) {
        //打印类名
        if (!isMeta) {
            printf("%s -: non-lazy classes要研究的类: - %s\n",__func__,mangledName);
        }
    }
    // Install methods and properties that the class implements itself.
    //取出方法列表
    method_list_t *list = ro->baseMethods();
    if (list) {
        prepareMethodLists(cls, &list, 1, YES, isBundleClass(cls), nullptr);
        if (rwe) rwe->methods.attachLists(&list, 1);
    }
    property_list_t *proplist = ro->baseProperties;
    if (rwe && proplist) {
        rwe->properties.attachLists(&proplist, 1);
    }
    protocol_list_t *protolist = ro->baseProtocols;
    if (rwe && protolist) {
        rwe->protocols.attachLists(&protolist, 1);
    }
    // Root classes get bonus method implementations if they don't have
    // them already. These apply before category replacements.
    if (cls->isRootMetaclass()) {
        // root metaclass
        addMethod(cls, @selector(initialize), (IMP)&objc_noop_imp, "", NO);
    }
    // Attach categories.
    if (previously) {
        if (isMeta) {
            objc::unattachedCategories.attachToClass(cls, previously,
                                                     ATTACH_METACLASS);
        } else {
            // When a class relocates, categories with class methods
            // may be registered on the class itself rather than on
            // the metaclass. Tell attachToClass to look for those.
            objc::unattachedCategories.attachToClass(cls, previously,
                                                     ATTACH_CLASS_AND_METACLASS);
        }
    }
    objc::unattachedCategories.attachToClass(cls, cls,
                                             isMeta ? ATTACH_METACLASS : ATTACH_CLASS);

#if DEBUG
    // Debug: sanity-check all SELs; log method list contents
    for (const auto& meth : rw->methods()) {
        if (PrintConnecting) {
            _objc_inform("METHOD %c[%s %s]", isMeta ? '+' : '-',
                         cls->nameForLogging(), sel_getName(meth.name()));
        }
        ASSERT(sel_registerName(sel_getName(meth.name())) == meth.name());
    }
#endif
}

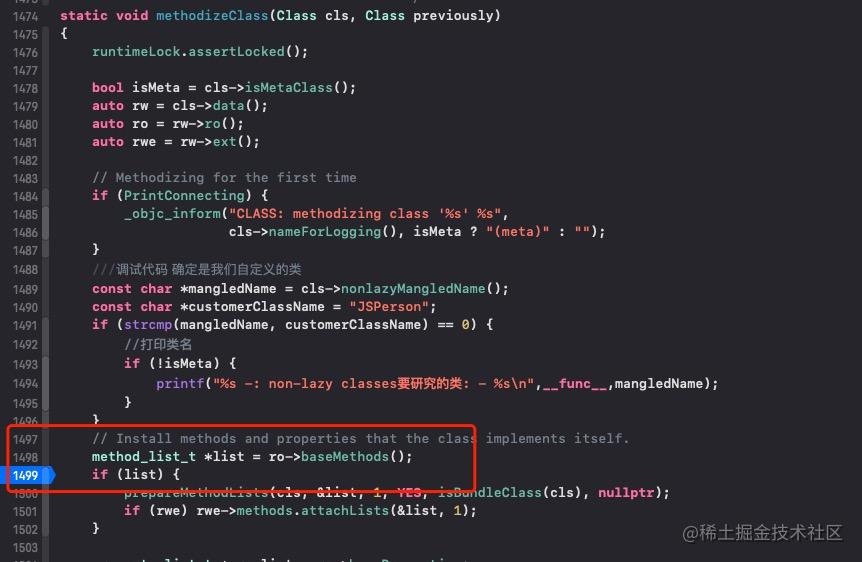

断点进入图示位置，此时方法列表还是不能打印

prepareMethodLists

我们继续探索，后面执行prepareMethodLists函数。

static void
prepareMethodLists(Class cls, method_list_t **addedLists, int addedCount,
                   bool baseMethods, bool methodsFromBundle, const char *why)
{
    runtimeLock.assertLocked();
    if (addedCount == 0) return;
    // There exist RR/AWZ/Core special cases for some class's base methods.
    // But this code should never need to scan base methods for RR/AWZ/Core:
    // default RR/AWZ/Core cannot be set before setInitialized().
    // Therefore we need not handle any special cases here.
    if (baseMethods) {
        ASSERT(cls->hasCustomAWZ() && cls->hasCustomRR() && cls->hasCustomCore());
    } else if (cls->cache.isConstantOptimizedCache()) {
        cls->setDisallowPreoptCachesRecursively(why);
    } else if (cls->allowsPreoptInlinedSels()) {
#if CONFIG_USE_PREOPT_CACHES
        SEL *sels = (SEL *)objc_opt_offsets[OBJC_OPT_INLINED_METHODS_START];
        SEL *sels_end = (SEL *)objc_opt_offsets[OBJC_OPT_INLINED_METHODS_END];
        if (method_lists_contains_any(addedLists, addedLists + addedCount, sels, sels_end - sels)) {
            cls->setDisallowPreoptInlinedSelsRecursively(why);
        }
#endif
    }
    // Add method lists to array.
    // Reallocate un-fixed method lists.
    // The new methods are PREPENDED to the method list array.

    for (int i = 0; i < addedCount; i++) {
        method_list_t *mlist = addedLists[i];
        ASSERT(mlist);
        // Fixup selectors if necessary
        if (!mlist->isFixedUp()) {
            //核心代码
            fixupMethodList(mlist, methodsFromBundle, true/*sort*/);
        }
    }

    // If the class is initialized, then scan for method implementations
    // tracked by the class's flags. If it's not initialized yet,
    // then objc_class::setInitialized() will take care of it.
    if (cls->isInitialized()) {
        objc::AWZScanner::scanAddedMethodLists(cls, addedLists, addedCount);
        objc::RRScanner::scanAddedMethodLists(cls, addedLists, addedCount);
        objc::CoreScanner::scanAddedMethodLists(cls, addedLists, addedCount);
    }
}

核心调用是fixupMethodList函数。

fixupMethodList

static void
fixupMethodList(method_list_t *mlist, bool bundleCopy, bool sort)
{
    runtimeLock.assertLocked();
    ASSERT(!mlist->isFixedUp());
    // fixme lock less in attachMethodLists ?
    // dyld3 may have already uniqued, but not sorted, the list
    if (!mlist->isUniqued()) {
        mutex_locker_t lock(selLock);

        // Unique selectors in list.
        for (auto& meth : *mlist) {
            const char *name = sel_cname(meth.name());
            meth.setName(sel_registerNameNoLock(name, bundleCopy));
        }
    }
    // Sort by selector address.
    // Don't try to sort small lists, as they're immutable.
    // Don't try to sort big lists of nonstandard size, as stable_sort
    // won't copy the entries properly.
    if (sort && !mlist->isSmallList() && mlist->entsize() == method_t::bigSize) {
        method_t::SortBySELAddress sorter;
        std::stable_sort(&mlist->begin()->big(), &mlist->end()->big(), sorter);
    }
    // Mark method list as uniqued and sorted.
    // Can't mark small lists, since they're immutable.
    if (!mlist->isSmallList()) {
        mlist->setFixedUp();
    }
}

核心的代码是stable_sort，我们分别打印排序前后方法列表，如图示

注意：这里一定要先在realizeClassWithoutSwift判断好是我们要研究的JSPerson类，然后再看打印结果，否则系统类也会有很多打印，影响我们分析。

methodizeClass -: non-lazy classes要研究的类: - JSPerson
****************sort之前 : say1 - 0x100003dda
sort之前 : say2 - 0x100003ddf
sort之前 : nickName - 0x7fff73fb8a1c
sort之前 : setNickName: - 0x7fff73fb8362
****************sort之后 : say1 - 0x100003dda
sort之后 : say2 - 0x100003ddf
sort之后 : setNickName: - 0x7fff73fb8362
sort之后 : nickName - 0x7fff73fb8a1c

通过上面打印结果：

• 排序前：say1 - 0x100003dda、say2 - 0x100003ddf、nickName - 0x7fff73fb8a1c、setNickName: - 0x7fff73fb8362
• 排序后：say1 - 0x100003dda、say2 - 0x100003ddf、setNickName: - 0x7fff73fb8362、nickName - 0x7fff73fb8a1c
• 排序是根据地址由低到高排序的。

小结

到目前为止，类的加载流程是：_read_images->realizeClassWithoutSwift->methodizeClass->prepareMethodLists->fixupMethodList。

懒加载类和非懒加载类

我们前面探索的其实都是非懒加载的类，懒加载类和非懒加载的类的区别就是是否实现了load方法。

非懒加载

通过上面的分析，我们已经很清楚了，是在_objc_init方法里加载的，也就是程序启动的时候。这也就是为什么load方法过多，会影响我们应用的启动速度。

懒加载类

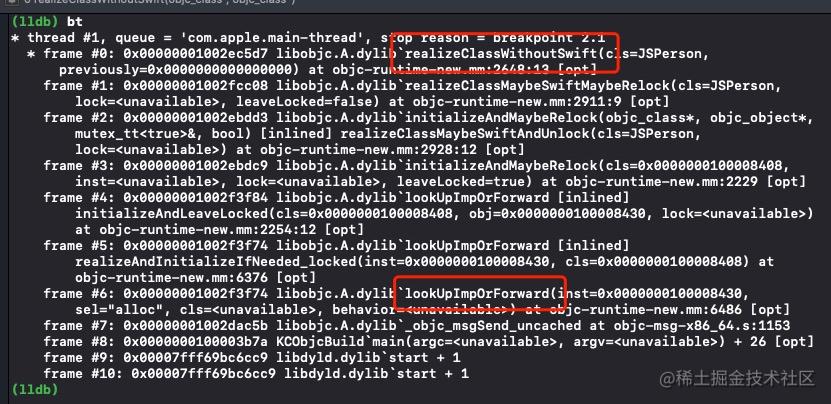

因为非懒加载类效率低，会影响我们的启动速度，那懒加载类是什么时候加载的呢？我们删掉JSPerson类的load方法，然后在main函数中实例化一个JSPerson实例

int main(int argc, const char * argv[]) {
    @autoreleasepool {
        JSPerson *p = [JSPerson alloc];
        [p say1];
        NSLog(@"Hello, World!");
    }
    return 0;
}

我们首先在main方法里添加断点，执行程序。走到main函数之后，然后再在realizeClassWithoutSwift添加断点：

断点走进来之后我们bt打印调用栈信息：

发现调用是从lookUpImpOrForward开始。

所以我们的结论是懒加载的类是在第一次被使用的时候加载的。

总结

• 非懒加载类：程序运行时加载，_read_images->realizeClassWithoutSwift->methodizeClass->prepareMethodLists->fixupMethodList。
• 懒加载类：第一次使用时加载，lookUpImpOrForward->realizeClassWithoutSwift->methodizeClass->prepareMethodLists->fixupMethodList

我们开发中经常会写分类，它是什么时候加载的及加载的流程，我们下一篇再探索。
